218-103/000-604 | WAGO
PCB terminal, 3 pole, pitch 2.5 mm, AWG 28-20, 6 A, cage clamp, black, 218-103/000-604
Unit Price (€ / pc.)
1.8683 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.7255 €
50 pcs.
1.5708 €
100 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale

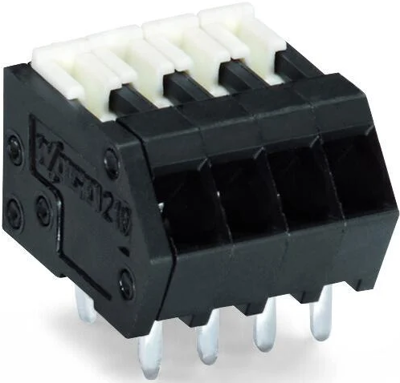

THR PCB terminal block, 218-103/000-604, Wago
Terminal block with actuating sliders 3-pole 2 solder pins/pole in row Spacing 2.5 mm / 0.098 in black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Depth | 13 mm | |
| Connection | cage clamp | |
| AWG cross-section | AWG 28-20 | |
| Rated voltage | 160 V | |
| Height | 10.9 mm | |
| Assembly | THR | |
| Width | 9 mm | |
| Pin number | 3 pole | |
| Colour | black | |
| Cable cross-section | 0.08-0.5 mm² | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
