2075-381/997-404 | WAGO
PCB terminal, 1 pole, pitch 3 mm, AWG 20-18, 9 A, push-in, gray, 2075-381/997-404
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3808 €
10 pcs.
0.3570 €
50 pcs.
0.3213 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
Subject to prior sale

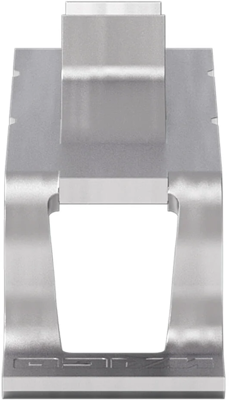

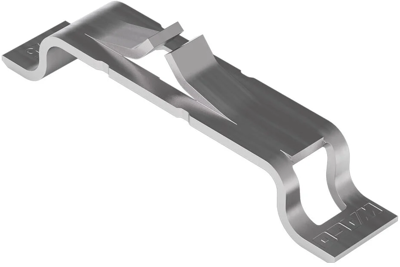

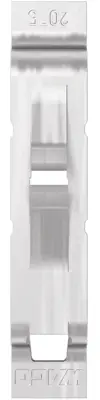

PCB terminal, 2075-381/997-404, WAGO

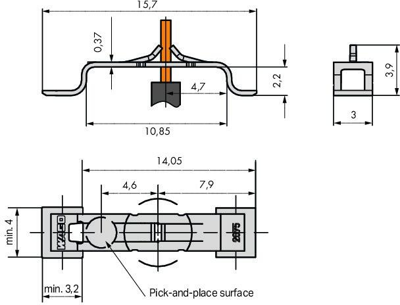

Through-Board SMD PCB Terminal block, pin spacing: 3 mm, 1-pole, push wire, without housing, 0.75 mm², silver-colored.
Features
- For vertical wiring
- Wiring performed on the back of the LED module simplifies lighting manufacturing
- For manual and automated wiring systems
- Overvoltage category: III
- Pollution degree: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-18 | |
| Colour | gray | |
| Connection | push-in | |
| Rated voltage | 500 V | |
| Cable cross-section | 0.34-0.75 mm² | |
| Width | 3 mm | |
| Height | 3.9 mm | |
| Assembly | SMD | |
| Depth | 17.5 mm | |
| Pin number | 1 pole | |
| Grid | 3 mm | |
| Rated current | 9 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
