2065-101/998-403 | WAGO
PCB terminal, 1 pole, pitch 6 mm, AWG 24-18, 9 A, push-in cage clamp, gray, 2065-101/998-403
Unit Price (€ / pc.)
0.3689 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3689 €
10 pcs.
0.3451 €
50 pcs.
0.3094 €
100 pcs.
0.2868 €
*incl. VAT plus shipping costs
Subject to prior sale

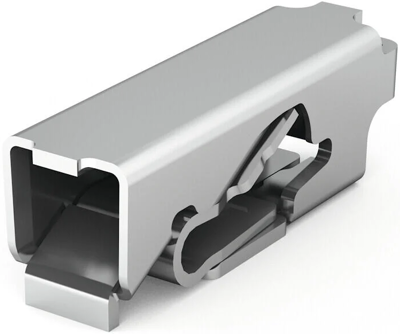

PCB terminal, 2065-101/998-403, WAGO
SMD PCB terminal block, 0.75 mm², pin spacing: 6 mm, 1-pole, push wire, without housing, 0.75 mm², silver-colored.
Features
- Push-in termination of solid conductors
- Overvoltage category: III
- Pollution degree: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24-18 | |
| Colour | gray | |
| Connection | push-in cage clamp | |
| Rated voltage | 4 kV | |
| Cable cross-section | 0.2-0.75 mm² | |

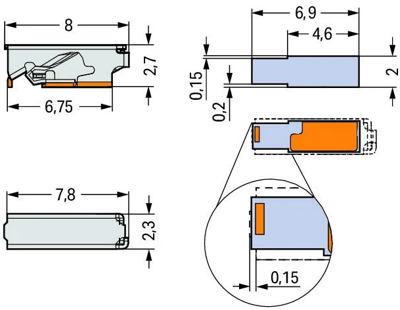

| Width | 2.3 mm | |
| Height | 2.7 mm | |
| Assembly | SMD | |
| Depth | 8 mm | |
| Pin number | 1 pole | |
| Grid | 6 mm | |
| Rated current | 9 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
