2060-471/998-404 | WAGO

PCB terminal, 1 pole, pitch 4 mm, AWG 24-18, 9 A, push-in cage clamp, black, 2060-471/998-404

Order No.: 09H3133
EAN: 4055143251198
MPN:
2060-471/998-404
Series: 2060

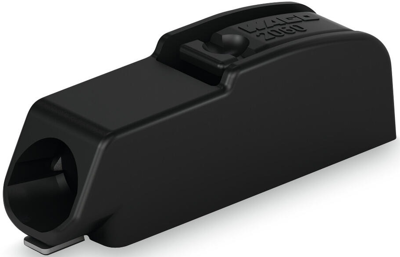

2060-471/998-404 WAGO PCB Terminal Blocks Image 1

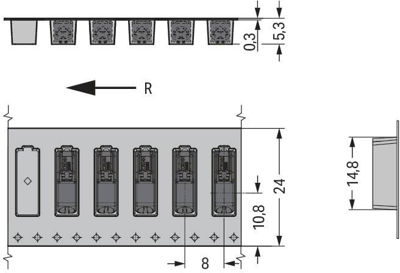

2060-471/998-404 WAGO PCB Terminal Blocks Image 2

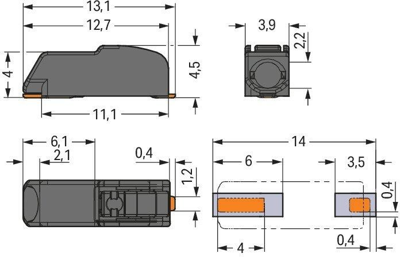

2060-471/998-404 WAGO PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
0.357 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.357 €

SMD terminal block, 4.0 mm grid, Wago 2060-471/998-404

With CAGE CLAMP S connectivity and operating button, suitable for block installation without loss of poles.

Technical specifications
Filter Property Value
Colour black
Cable cross-section 0.2-0.75 mm²
Assembly SMD
Grid 4 mm
Connection push-in cage clamp
Width 3.9 mm
Depth 13.1 mm
Height 4.5 mm
Rated voltage 160 V
Pin number 1 pole
AWG cross-section AWG 24-18
Rated current 9 A
Logistics
Property Value
Customs tariff number 85369010
Country of origin CH
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
