2060-453/998-404 | WAGO

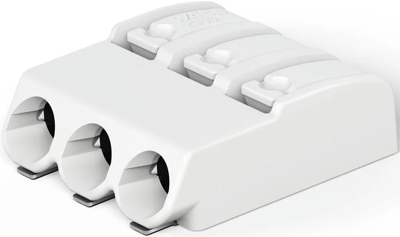

PCB terminal, 3 pole, pitch 4 mm, AWG 24-18, 9 A, push-in cage clamp, white, 2060-453/998-404
Unit Price (€ / pc.)
1.1067 € *
Available: 155 pcs.
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1067 €
10 pcs.
1.0115 €
50 pcs.
0.9282 €
100 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD terminal block, 4.0 mm grid, Wago 2060-453/998-404
With CAGE CLAMP S connectivity and operating button, suitable for block installation without loss of poles.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Depth | 13.1 mm | |
| Rated voltage | 160 V | |
| Grid | 4 mm | |
| Cable cross-section | 0.2-0.75 mm² | |
| Height | 4.5 mm | |
| Width | 11.9 mm | |
| Connection | push-in cage clamp | |
| Rated current | 9 A | |
| Colour | white | |
| AWG cross-section | AWG 24-18 | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
