2060-1471/998-404 | WAGO

PCB terminal, 1 pole, pitch 4 mm, AWG 24-18, 9 A, push-in cage clamp, black, 2060-1471/998-404

Order No.: 43P3617
EAN: 4055143331234
MPN:
2060-1471/998-404
Series: 2060

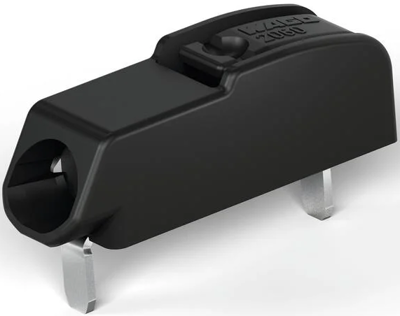

2060-1471/998-404 WAGO PCB Terminal Blocks Image 1
2060-1471/998-404 WAGO PCB Terminal Blocks Image 2
2060-1471/998-404 WAGO PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
0.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3808 €

THR PCB terminal block, 2060-1471/998-404, Wago

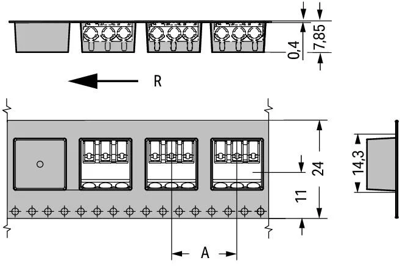

THR terminal strip with actuation pushers in belt Grid dimension 4 mm black

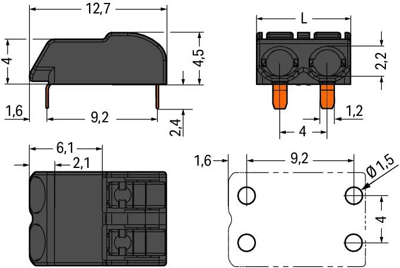

Technical specifications
Filter Property Value
Pin number 1 pole
Rated voltage 160 V
Connection push-in cage clamp
Colour black
Grid 4 mm
Depth 12.7 mm
AWG cross-section AWG 24-18
Cable cross-section 0.2-0.75 mm²
Assembly THR
Height 6.9 mm
Width 3.9 mm
Rated current 9 A
Logistics
Property Value
Country of origin CH
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
