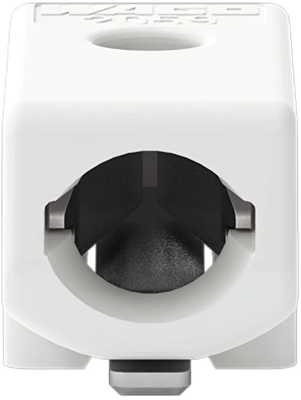

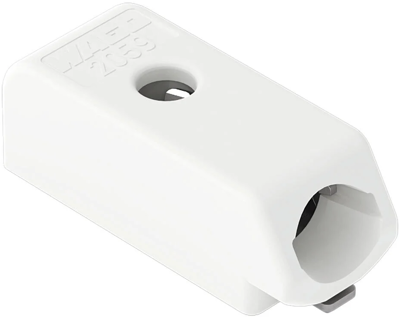

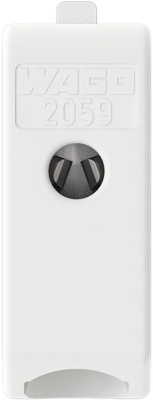

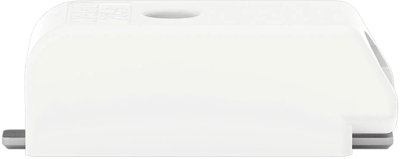

2059-301/998-403 | WAGO
PCB terminal, 1 pole, pitch 3 mm, AWG 26-22, 3 A, push-in, white, 2059-301/998-403
Unit Price (€ / pc.)
0.4403 € *
Next delivery: 2,642 pcs. on 2025-10-29
Total Price:
0.88 € *
Price list
Quantity
Price per unit*
2 pcs.
0.4403 €
10 pcs.
0.4046 €
50 pcs.
0.3689 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD terminal block, 1-pole, 3.0 mm grid, Wago 2059-301/998-403
With PUSH-WIRE connectivity and operating buttons, suitable for block installation without loss of poles.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 7.9 mm | |
| AWG cross-section | AWG 26-22 | |
| Rated current | 3 A | |
| Height | 2.7 mm | |
| Colour | white | |
| Assembly | SMD | |
| Width | 2.9 mm | |
| Grid | 3 mm | |
| Rated voltage | 160 V | |
| Connection | push-in | |
| Pin number | 1 pole | |
| Cable cross-section | 0.14-0.34 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
