832-3605 | WAGO

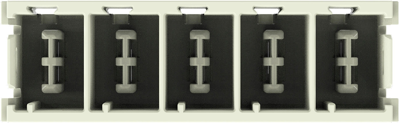

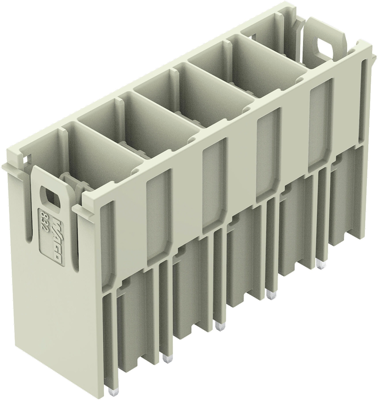

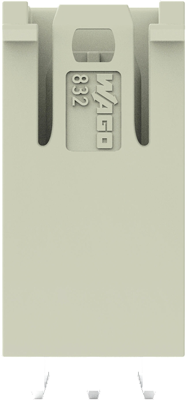

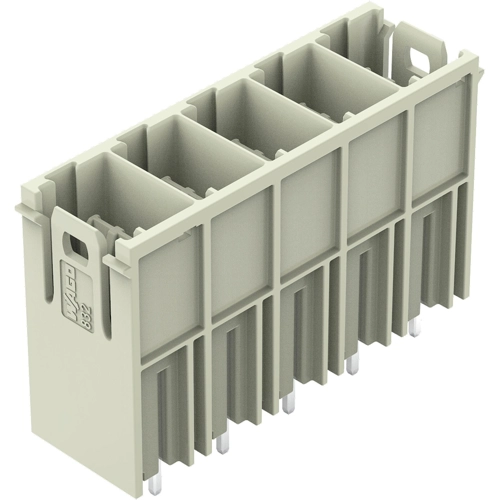

Pin header, 5 pole, pitch 10.16 mm, straight, gray, 832-3605
Unit Price (€ / pc.)
11.7215 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
11.72 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7215 €
10 pcs.
10.7814 €
50 pcs.
9.8175 €
100 pcs.
8.8417 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 832-3605, WAGO
The 832-3605 is a THT male header with three solder pins per pole that provides high electrical and mechanical stability.
Features
- Mating face with higher protection against accidental contact
- 100% protected against mismating
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10.16 mm | |
| contact surface | silver-plated | |
| Contact type | pin | |
| Connection | solder pin | |
| Rated voltage | 1000 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 5 pole | |
| Additional parts | equipped | |
| Colour | gray | |
| Version | pin header | |
| Rated current | 76 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
