832-3602 | WAGO

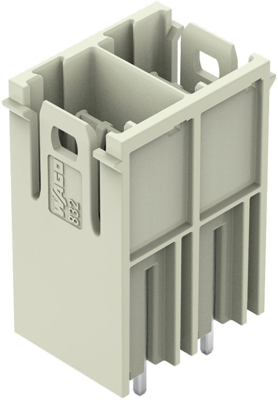

Pin header, 2 pole, pitch 10.16 mm, straight, gray, 832-3602
Unit Price (€ / pc.)
5.4978 € *
Standard delivery time from the manufacturer is: 4 Weeks
Male header, 832-3602, WAGO

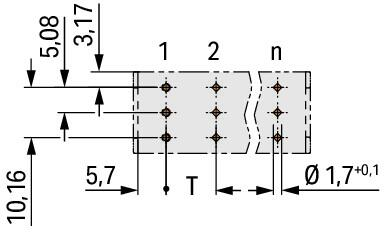

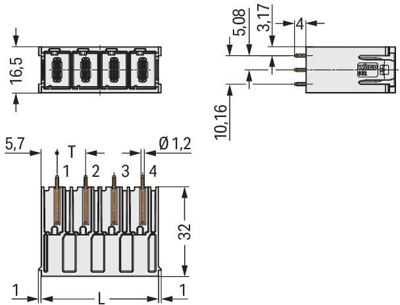

THT male header; 1.2 x 1.2 mm solder pin; straight; 100% protected against mismating; Silver-plated contacts; Pin spacing 10.16 mm; 2-pole; light gray.
Features

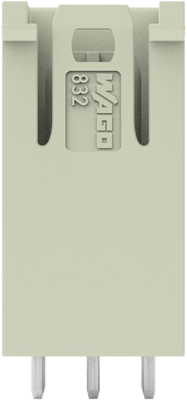

- Three solder pins per pole provide high electrical and mechanical stability

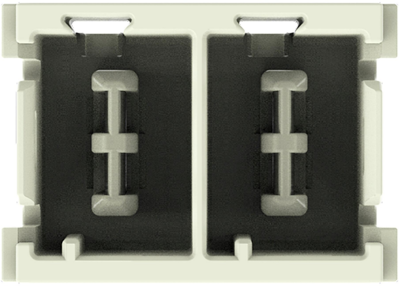

- Mating face (IP2XB) with higher protection against accidental contact
- 100% protected against mismating
- Coding via coding fingers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Type of locking | No | |
| Rated voltage | 800 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 10.16 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Rated current | 76 A | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
