832-1105 | WAGO

Socket header, 5 pole, pitch 10.16 mm, straight, gray, 832-1105

Order No.: 45P2138
EAN: 4055143736749
MPN:
832-1105
Series: MCS MAXI 16

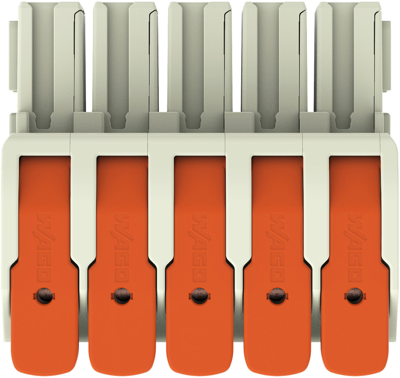

832-1105 WAGO PCB Connection Systems Image 1

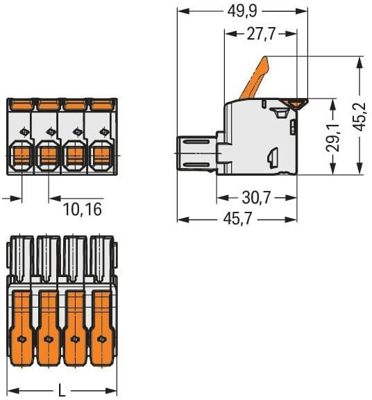

832-1105 WAGO PCB Connection Systems Image 2

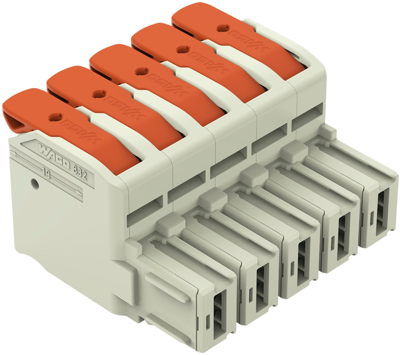

832-1105 WAGO PCB Connection Systems Image 3

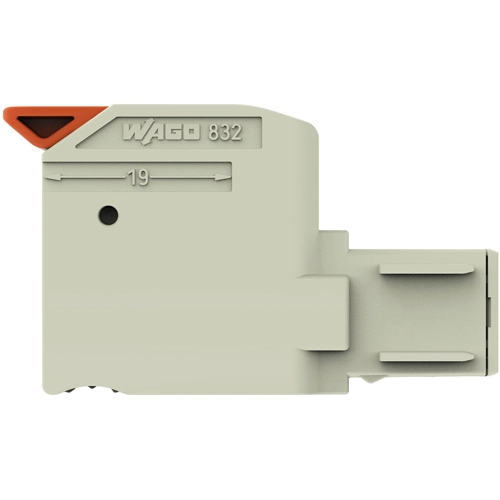

832-1105 WAGO PCB Connection Systems Image 4

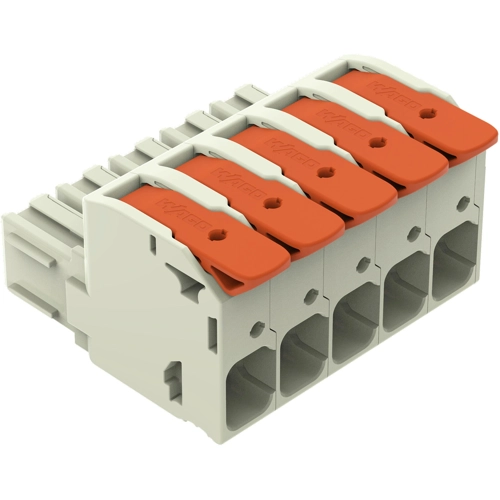

832-1105 WAGO PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
21.4200 € *
Available: 11 pcs.
Total Price:
21.42 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4200 €
10 pcs.
19.9206 €
50 pcs.
18.3260 €
100 pcs.
16.6719 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Clamp connector, 832-1105, WAGO

The 832-1105 is a push-in cage clamp, single conductor female connector with pin spacing 10.16 mm.

Features

  • Intuitive and tool-free lever actuation
  • Universal connection for all conductor types
  • 100% protected against mismating
Technical specifications
Filter Property Value
Contact type socket
Orientation straight
Grid 10.16 mm
Additional parts equipped
Rated current 76 A
Number of rows 1
Colour gray
contact surface silver-plated
Version socket header
Connection push-in spring connection
Pin number 5 pole
Rated voltage 1000 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
