831-3623 | WAGO

Pin header, 3 pole, pitch 7.62 mm, angled, light gray, 831-3623

Order No.: 45P2118
EAN: 4045454002183
MPN:
831-3623
Series: MCS MAXI 6

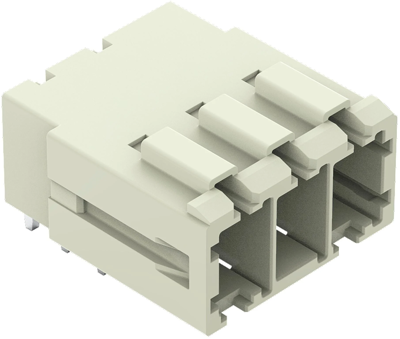

831-3623 WAGO PCB Connection Systems Image 1

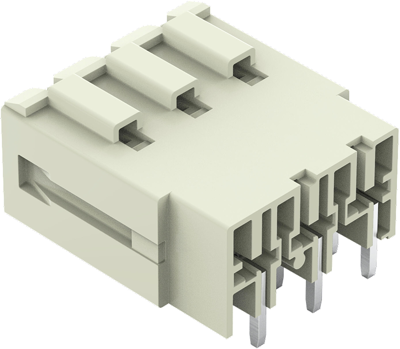

831-3623 WAGO PCB Connection Systems Image 2

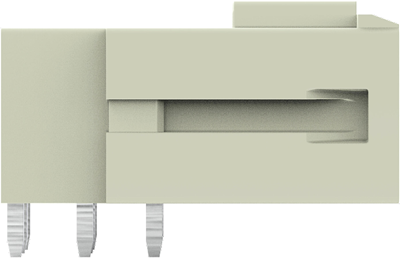

831-3623 WAGO PCB Connection Systems Image 3

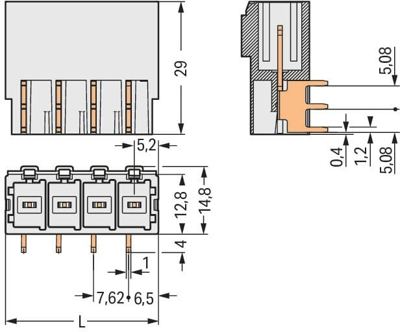

831-3623 WAGO PCB Connection Systems Image 4

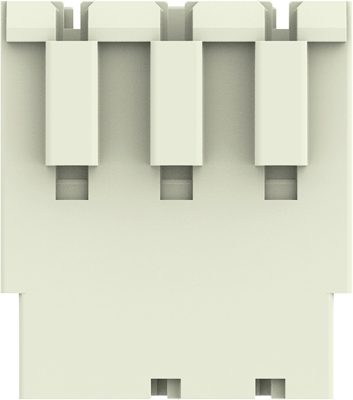

831-3623 WAGO PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.8441 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.84 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8441 €
10 pcs.
2.5585 €
*incl. VAT plus shipping costs
Subject to prior sale

Male header, 831-3623, Wago

Male connector with angled solder pins 3 poles Spacing 7.62 mm / 0.3 in 100 % mismating protected 3 x solder pin 1 x 1.2 mm Mating direction parallel to PCB light grey

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 41 A
Grid 7.62 mm
Connection plating tin-plated
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 630 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
