831-3608 | WAGO

Pin header, 8 pole, pitch 7.62 mm, straight, light gray, 831-3608

Order No.: 45P2115
EAN: 4045454002169
MPN:
831-3608
Series: MCS MAXI 6
831-3608 WAGO PCB Connection Systems Image 1
831-3608 WAGO PCB Connection Systems Image 2
831-3608 WAGO PCB Connection Systems Image 3
831-3608 WAGO PCB Connection Systems Image 4
831-3608 WAGO PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
7.4613 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.46 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4613 €
10 pcs.
6.7116 €
*incl. VAT plus shipping costs
Subject to prior sale

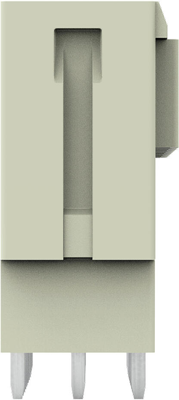

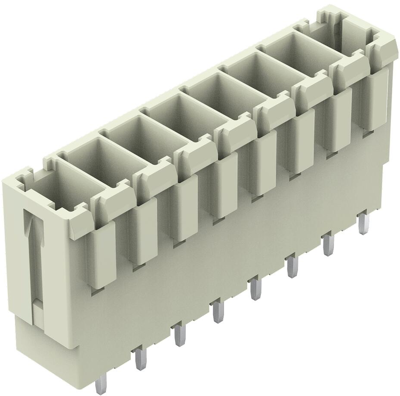

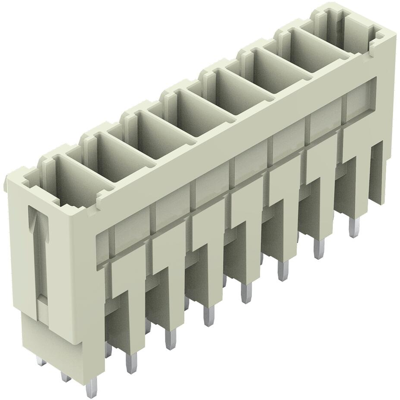

Male header, 831-3608, Wago

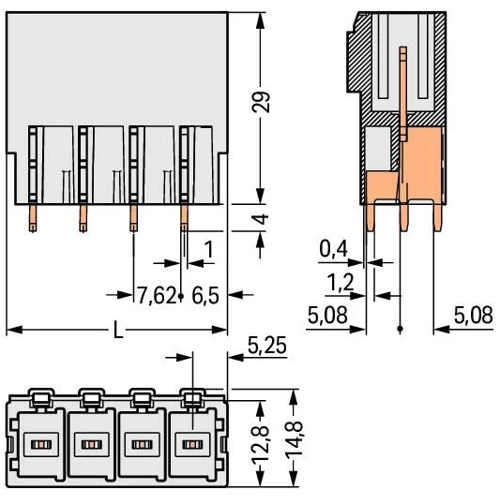

Male connector with straight solder pins 8 poles Spacing 7.62 mm / 0.3 in 100 % mismating protected 3 x solder pin 1 x 1.2 mm mating direction perpendicular to PCB light grey

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated

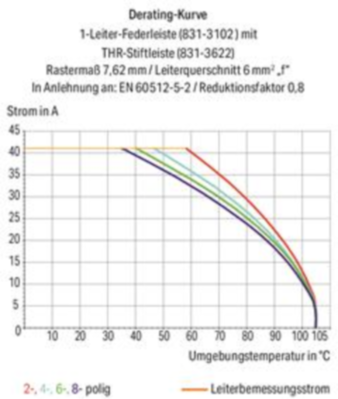

Rated current 41 A
Grid 7.62 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 630 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
