831-3604 | WAGO

Pin header, 4 pole, pitch 7.62 mm, straight, light gray, 831-3604

Order No.: 45P2111
EAN: 4045454002121
MPN:
831-3604
Series: MCS MAXI 6

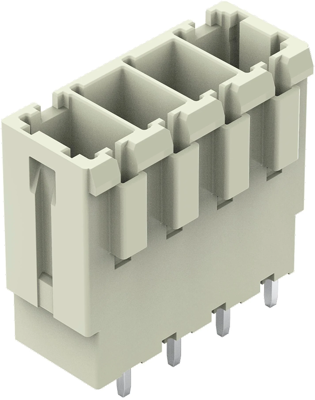

831-3604 WAGO PCB Connection Systems Image 1

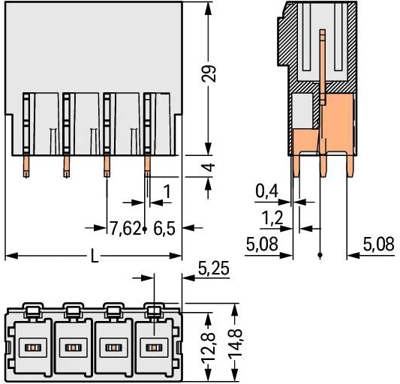

831-3604 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.7723 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.77 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7723 €
10 pcs.
3.4034 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 831-3604, Wago

Male connector with straight solder pins 4 poles Spacing 7.62 mm / 0.3 in 100 % mismating protected 3 x solder pin 1 x 1.2 mm mating direction perpendicular to PCB light grey

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 41 A
Grid 7.62 mm
Connection plating tin-plated
Pin number 4 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 630 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
