831-3602 | WAGO
Pin header, 2 pole, pitch 7.62 mm, straight, light gray, 831-3602
Unit Price (€ / pc.)
1.9754 € *
Available: 28 pcs.
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9754 €
10 pcs.
1.7612 €
*incl. VAT plus shipping costs
Subject to prior sale

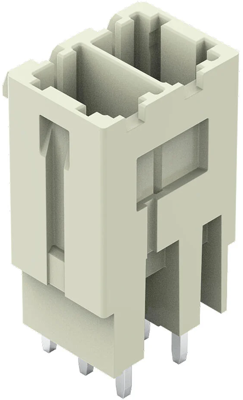

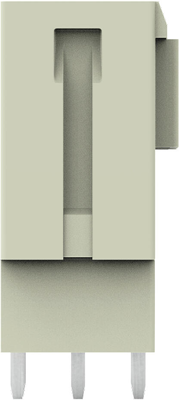

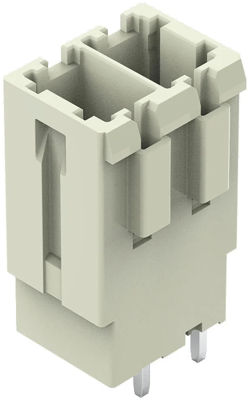

Male header, 831-3602, Wago

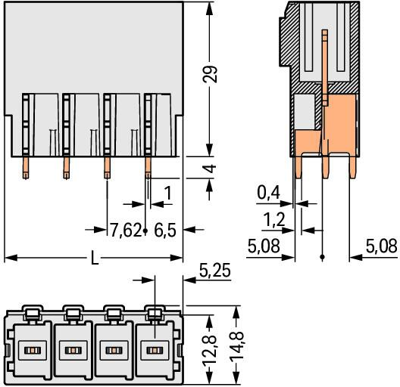

Male connector with straight solder pins 2 poles Spacing 7.62 mm / 0.3 in 100 % mismating protected 3 x solder pin 1 x 1.2 mm mating direction perpendicular to PCB light grey
Technical specifications
| Filter | Property | Value |
|---|---|---|

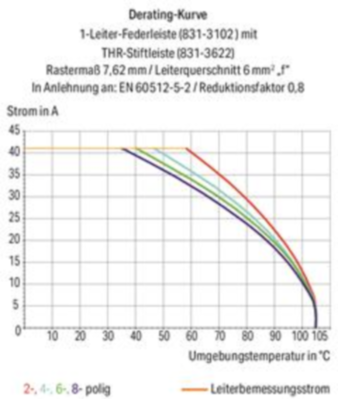

| Rated current | 41 A | |
| contact surface | tin-plated | |
| Colour | light gray | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 7.62 mm | |
| Orientation | straight | |
| Rated voltage | 630 V | |
| Connection | solder pin | |
| Pin number | 2 pole | |
| Version | pin header | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
