831-3108/037-9037 | WAGO
1-wire female connector, 8 pole, pitch 7.62 mm, light gray, 831-3108/037-9037
Unit Price (€ / pc.)
14.9583 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
14.96 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9583 €
10 pcs.
13.4589 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 831-3108/037-9037, WAGO

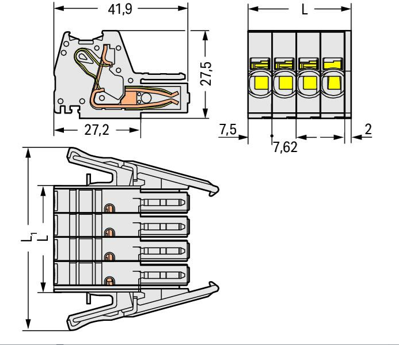

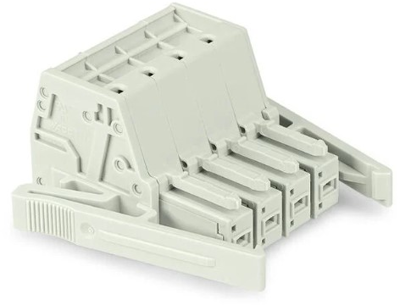

1-conductor female connector, Push-in CAGE CLAMP, 10 mm², pin spacing 7.62 mm, 8-pole, 100% protected against mismating, lateral locking levers, direct marking, 10,00 mm², light gray.
Features
- Universal connection for all conductor types
- Integrated test ports for 2 mm Ø test plugs
- Coding via coding fingers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 41 A | |
| Colour | light gray | |
| Additional parts | equipped | |
| Contact type | socket | |
| Grid | 7.62 mm | |
| Rated voltage | 1000 V | |
| Connection | push-in | |
| Breakable | No | |
| Pin number | 8 pole | |
| Version | socket header | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
