769-643/007-000 | WAGO
Pin header, 13 pole, pitch 5 mm, straight, gray, 769-643/007-000
Unit Price (€ / pc.)
3.9984 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.00 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9984 €
10 pcs.
3.5938 €
*incl. VAT plus shipping costs
**Subject to prior sale

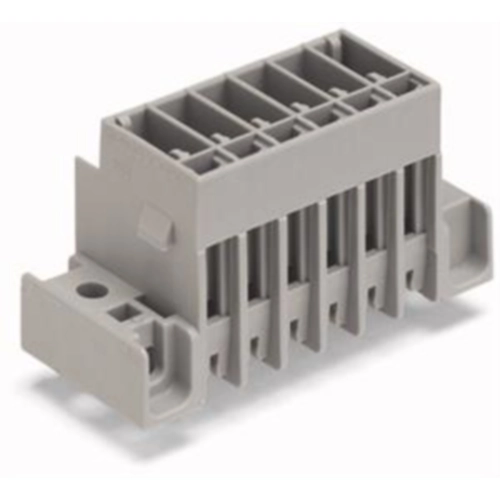

Male header, 769-643/007-000, Wago

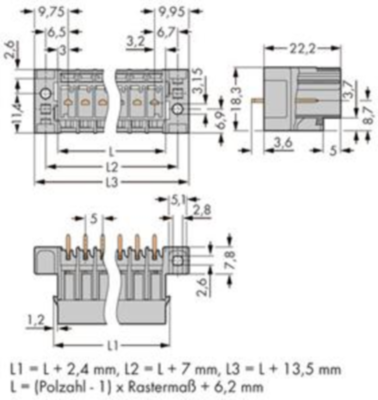

Male header with straight solder pins and rivet fixing flanges mating direction perpendicular to PCB 1 x 1 mm grid spacing 5 mm / 0.197 in 13 poles grey
Technical specifications
| Connection | Lötstift | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | grau | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 32 A | |
| Orientation | gerade | |
| Pin number | 13-polig | |
| Grid | 5 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
