769-632 | WAGO

Pin header, 2 pole, pitch 5 mm, straight, gray, 769-632

Order No.: 44P6710
EAN: 4044918270564
MPN:
769-632
Series: 769

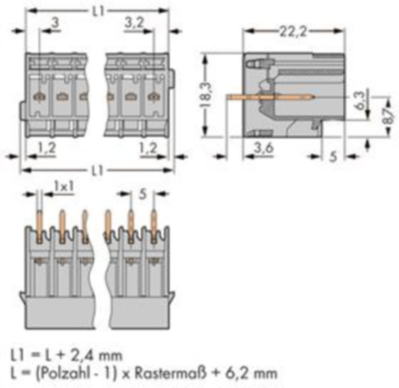

769-632 WAGO PCB Connection Systems Image 1

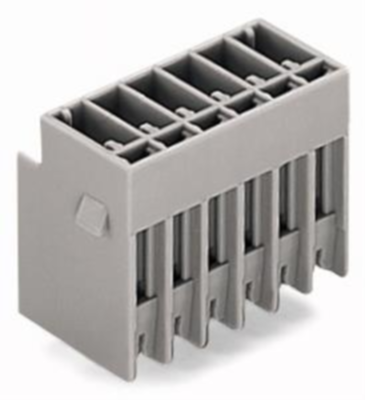

769-632 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.5355 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4760 €
100 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 769-632, Wago

Male header with straight solder pins mating direction perpendicular to PCB 1 x 1 mm pitch 5 mm / 0.197 in 2 poles grey

Technical specifications
Filter Property Value
Connection plating tin-plated
Connection solder pin
Colour gray
Additional parts equipped
Pin number 2 pole
Contact type pin
Orientation straight
Type of locking No
Rated voltage 250 V
contact surface tin-plated
Version pin header
Rated current 32 A
Number of rows 1
Grid 5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
