769-614/002-000 | WAGO

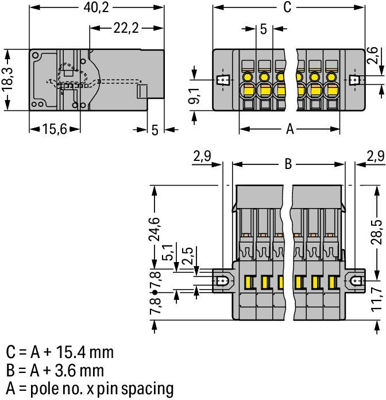

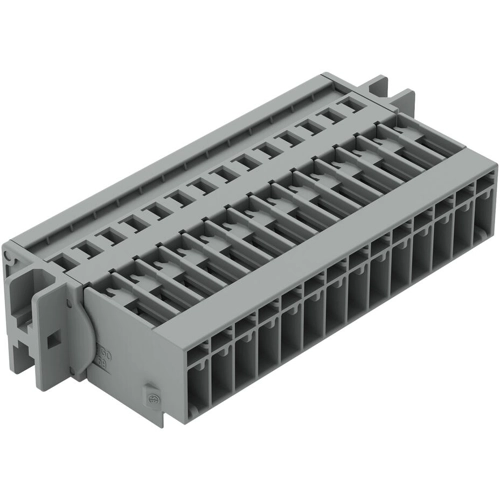

Pin header, 14 pole, pitch 5 mm, straight, gray, 769-614/002-000
Unit Price (€ / pc.)
12.0190 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
12.02 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0190 €
10 pcs.
11.0551 €
50 pcs.
10.0674 €
100 pcs.
9.0559 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Conductor male connector, 769-614/002-000, Wago
Male connector with CAGE CLAMP connection and mounting flanges for screw or similar types of fixing Mounting types for vertical or horizontal mounting Spacing 5 mm / 0.197 in 14-pin gray
Technical specifications
| Connection | Federkraftanschluss | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | grau | |
| Contact type | Stift | |
| Rated voltage | 500 V | |
| Rated current | 32 A | |
| Orientation | gerade | |
| Pin number | 14-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
