769-613/001-000 | WAGO

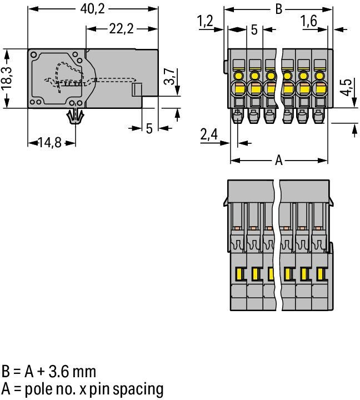

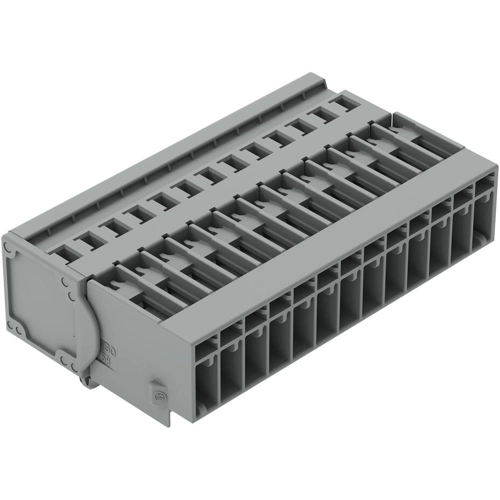

Pin header, 13 pole, pitch 5 mm, straight, gray, 769-613/001-000
Unit Price (€ / pc.)
10.0793 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
10.08 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0793 €
10 pcs.
9.0678 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Conductor male connector, 769-613/001-000, Wago
Male connector with CAGE CLAMP connection and snap-in feet for sheet thickness 0.6 - 1.2 mm Mounting holes Ø 3.5 mm with mounting adapter 209-137 also on TS 35 Spacing 5 mm / 0.197 in 13-pin gray
Technical specifications
| Colour | gray | |
| Rated current | 32 A | |
| Grid | 5 mm | |
| Pin number | 13 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring-cage connection | |
| Contact type | pin | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
