769-608 | WAGO

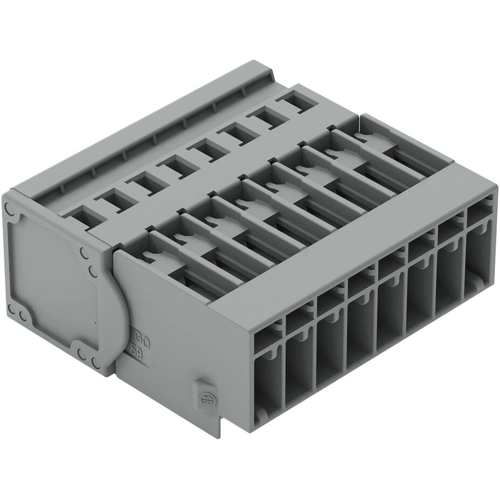

Pin header, 8 pole, pitch 5 mm, straight, gray, 769-608
Unit Price (€ / pc.)
7.2233 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.22 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2233 €
10 pcs.
6.6402 €
50 pcs.
6.0452 €
100 pcs.
5.4383 €
*incl. VAT plus shipping costs
Subject to prior sale
1-Conductor male connector, 769-608, Wago
Male connector with CAGE CLAMP connection for flying leads Spacing 5 mm / 0.197 in 8-pin gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Pin number | 8 pole | |
| Colour | gray | |
| Contact type | pin | |
| Rated current | 32 A | |
| Version | pin header | |
| Connection | spring-cage connection | |
| Additional parts | equipped | |
| Rated voltage | 500 V | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
