769-132 | WAGO

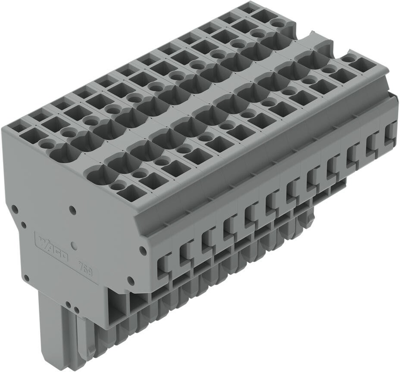

Female connector, 12 pole, pitch 5 mm, straight, gray, 769-132
Unit Price (€ / pc.)
22.8837 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
22.88 € *
Price list
Quantity
Price per unit*
1 pcs.
22.8837 €
10 pcs.
21.0511 €
50 pcs.
19.3732 €
100 pcs.
17.6239 €
*incl. VAT plus shipping costs
Subject to prior sale
2-conductor female connector, 769-132, WAGO
2-conductor female connector, Cage clamp, 4 mm², Pin spacing 5 mm, 12-pole, coding finger, 4.00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 12 pole | |
| Rated voltage | 500 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 5 mm | |
| Connection | spring balancer connection | |
| Rated current | 32 A | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
