769-128 | WAGO

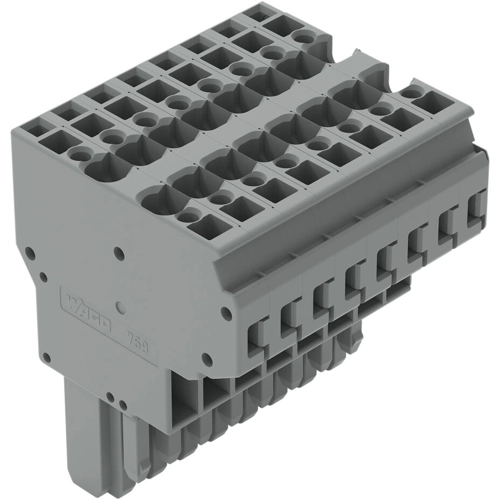

Socket header, 8 pole, pitch 5 mm, straight, gray, 769-128
Unit Price (€ / pc.)
16.1245 € *
Available: 9 pcs.
Total Price:
16.12 € *
Price list
Quantity
Price per unit*
1 pcs.
16.1245 €
10 pcs.
14.8393 €
50 pcs.
13.4946 €
100 pcs.
12.1499 €
*incl. VAT plus shipping costs
Subject to prior sale
2-Conductor female connector, 769-128, Wago
2-conductor female multipoint connector for insertion into base terminals or pin strips, can be coded, can be bridged with cross and box jumpers 8-pin gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 8 pole | |
| Rated voltage | 500 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 5 mm | |
| Additional parts | equipped | |
| Connection | spring-cage connection | |
| Rated current | 32 A | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
