769-114/000-036 | WAGO
Socket header, 14 pole, pitch 5 mm, straight, green-yellow/gray, 769-114/000-036
Unit Price (€ / pc.)
14.2086 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
14.21 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2086 €
10 pcs.
13.0662 €
50 pcs.
11.9000 €
100 pcs.
10.7100 €
*incl. VAT plus shipping costs
Subject to prior sale

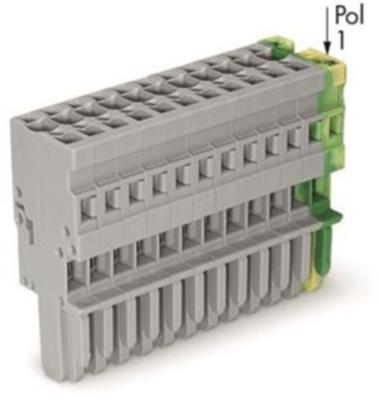

Female connector, 769-114/000-036, WAGO
1-conductor female connector, CAGE CLAMP, 4 mm², pin spacing 5 mm, 14-pole, coding finger, 4,00 mm², green-yellow/gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Pin number | 14 pole | |
| Colour | green-yellow/gray | |
| Contact type | socket | |
| Rated current | 32 A | |
| Version | socket header | |
| Connection | spring-cage connection | |
| Additional parts | equipped | |
| Rated voltage | 500 V | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
