769-108/000-006 | WAGO
Socket header, 8 pole, pitch 5 mm, straight, blue, 769-108/000-006
Unit Price (€ / pc.)
9.1392 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.14 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1392 €
10 pcs.
8.4133 €
50 pcs.
7.6517 €
100 pcs.
6.8901 €
*incl. VAT plus shipping costs
Subject to prior sale

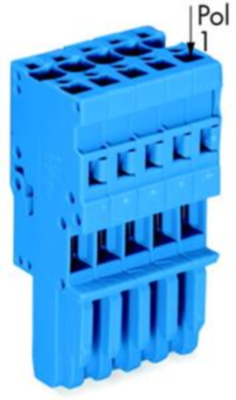

1-Conductor female connector, 769-108/000-006, Wago
1-conductor female connector, straight, for insertion into base terminals or pin headers, can be coded, can be bridged with mini cross-bridges 8-pin blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Pin number | 8 pole | |
| Colour | blue | |
| Contact type | socket | |
| Rated current | 32 A | |
| Version | socket header | |
| Connection | spring-cage connection | |
| Additional parts | equipped | |
| Rated voltage | 500 V | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
