734-565 | WAGO

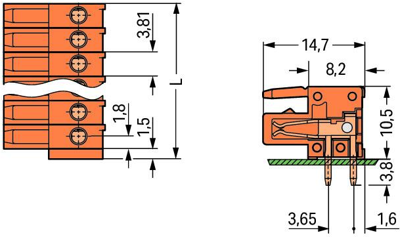

Socket header, 5 pole, pitch 3.81 mm, angled, orange, 734-565
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: On Request
Female header, 734-565, Wago
Female connector with angled solder pins 5-pin Spacing 3.81 mm / 0.15 in 100 % mismating protected Solder pin 0.9 mm x 0.9 mm codable Mating direction parallel to PCB with 2 latches orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Colour | orange | |
| Additional parts | equipped | |
| Pin number | 5 pole | |
| Contact type | socket | |
| Orientation | angled | |
| Type of locking | No | |
| Rated voltage | 160 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 10 A | |
| Number of rows | 1 | |
| Grid | 3.81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
