734-542 | WAGO

Socket header, 12 pole, pitch 3.5 mm, angled, light gray, 734-542

Order No.: 44P4344
EAN: 4045454120665
MPN:
734-542
Series: MCS MINI

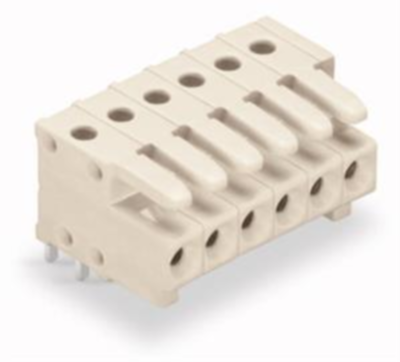

734-542 WAGO PCB Connection Systems Image 1

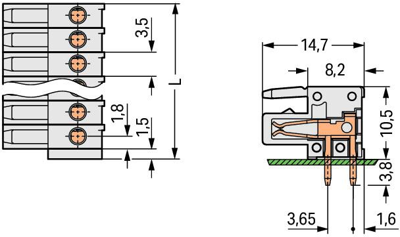

734-542 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.5684 € *
Available: 30 pcs.
Total Price:
7.57 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5684 €
10 pcs.
6.9615 €
50 pcs.
6.3308 €
100 pcs.
5.7001 €
*incl. VAT plus shipping costs
Subject to prior sale

Female header, 734-542, Wago

Female connector with angled solder pins 12-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected Solder pin 0.9 mm x 0.9 mm codable Mating direction parallel to PCB with 2 latches light grey

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.5 mm
Connection plating tin-plated
Pin number 12 pole
Version socket header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type socket
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
