734-512 | WAGO

Socket header, 12 pole, pitch 3.81 mm, straight, orange, 734-512

Order No.: 44P4314
EAN: 4045454120382
MPN:
734-512
Series: MCS MINI

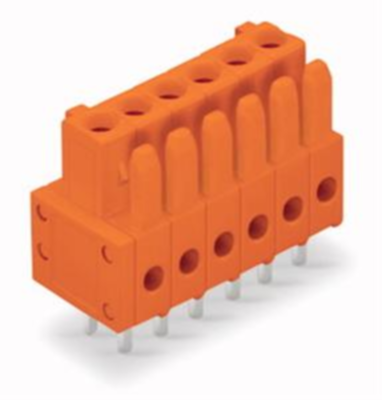

734-512 WAGO PCB Connection Systems Image 1
734-512 WAGO PCB Connection Systems Image 2
734-512 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.5684 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
7.57 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5684 €
10 pcs.
6.9615 €
50 pcs.
6.3308 €
100 pcs.
5.7001 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female header, 734-512, Wago

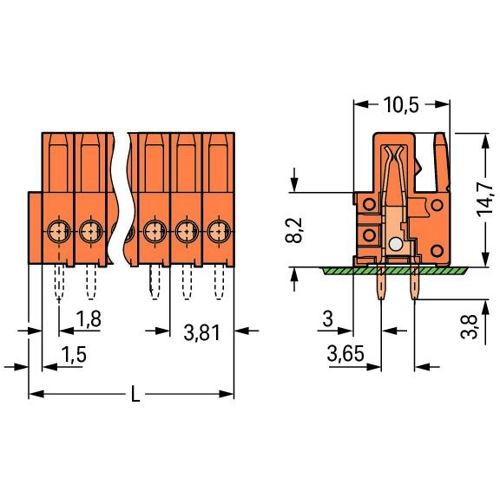

Female connector with straight solder pins 12-pole Spacing 3.81 mm / 0.15 in 100 % mismating protected Solder pin 0.9 mm x 0.9 mm codable Mating direction perpendicular to PCB with 2 latches orange

Technical specifications
Colour orange
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.81 mm
Connection plating tin-plated
Pin number 12 pole
Version socket header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type socket
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
