734-505 | WAGO

Socket header, 5 pole, pitch 3.81 mm, straight, orange, 734-505

Order No.: 44P4304
EAN: 4045454120276
MPN:
734-505
Series: MCS MINI

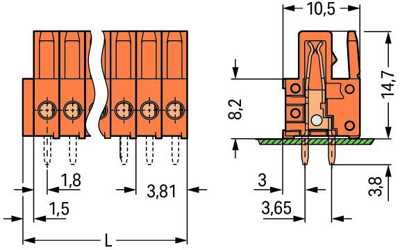

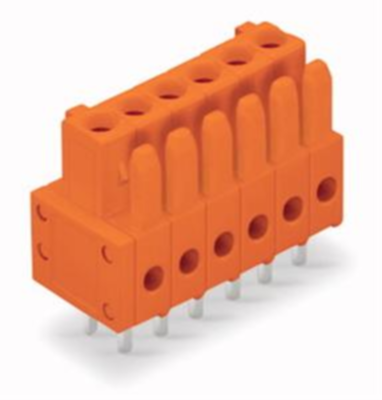

734-505 WAGO PCB Connection Systems Image 1
734-505 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.4633 €

Female header, 734-505, Wago

Female connector with straight solder pins 5-pole Spacing 3.81 mm / 0.15 in 100 % mismating protected Solder pin 0.9 mm x 0.9 mm codable Mating direction perpendicular to PCB with 2 detents orange

Technical specifications
Colour orange
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.81 mm
Connection plating tin-plated
Pin number 5 pole
Version socket header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type socket
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
