734-367/037-000 | WAGO

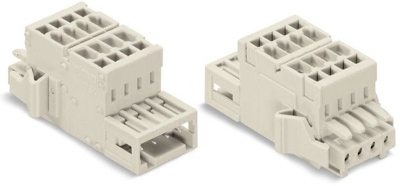

2-wire combination connector, 7 pole, pitch 3.5 mm, light gray, 734-367/037-000
Unit Price (€ / pc.)
16.3268 € *
Standard delivery time from the manufacturer is: On Request
2-conductor combi strip, 734-367/037-000, WAGO
2-conductor combi strip, 100% protected against mismating, 1.5 mm², Locking lever, 7-pole, Pin spacing 3.5 mm, light gray.
Features
- Universal connection for all conductor types
- Multiply potentials
- Strain relief plates and housings for factory and field assembly
- Supply via pin-contact side
- Combi strips may be connected to multiply outputs
- 100% protected against mismating
Technical specifications
| Colour | light gray | |
| Breakable | No | |
| Rated current | 10 A | |
| Grid | 3.5 mm | |
| Pin number | 7 pole | |
| Version | combination plug | |
| Additional parts | equipped | |
| Connection | spring-cage connection | |
| Contact type | socket/pin | |
| Rated voltage | 160 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
