734-342/019-000 | WAGO

Pin header, 12 pole, pitch 3.81 mm, angled, orange, 734-342/019-000

Order No.: 44P4167
EAN: 4055143269056
MPN:
734-342/019-000
Series: MCS MINI

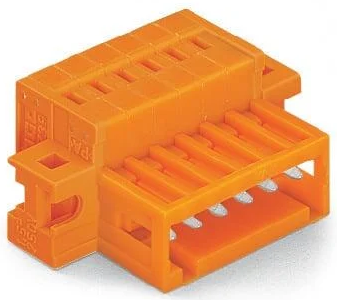

734-342/019-000 WAGO PCB Connection Systems Image 1

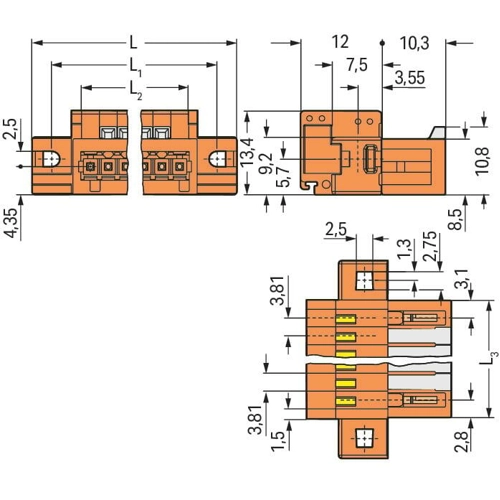

734-342/019-000 WAGO PCB Connection Systems Image 2

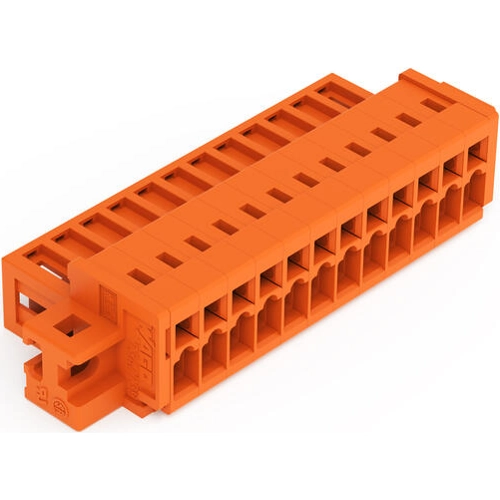

734-342/019-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
6.8425 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.8425 €

Male header, 734-342/019-000, Wago

Male connector with mounting flanges 12-pin Spacing 3.81 mm / 0.15 in 100 % mismate-protected for screw or similar mounting types for vertical or horizontal mounting mounting types for vertical or horizontal mounting orange

Technical specifications
Colour orange
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.81 mm
Connection plating tin-plated
Pin number 12 pole
Version pin header
Additional parts equipped
Orientation angled
Connection spring balancer connection
Contact type pin
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
