734-313/109-000 | WAGO

Pin header, 13 pole, pitch 3.5 mm, angled, light gray, 734-313/109-000

Order No.: 44P6380
EAN: 4055143266482
MPN:
734-313/109-000
Series: MCS MINI

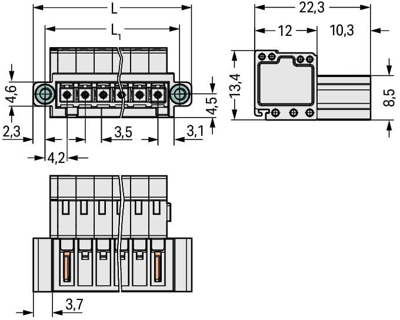

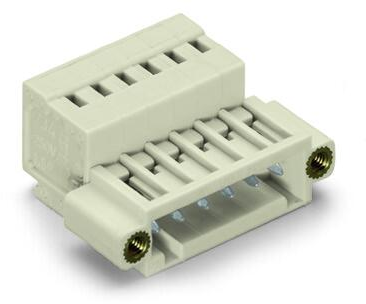

734-313/109-000 WAGO PCB Connection Systems Image 1
734-313/109-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
10.8409 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.8409 €

Male connector, 734-313/109-000, WAGO

1-conductor male connector, CAGE CLAMP®, 1.5 mm², Pin spacing 3.5 mm, 13-pole, 100% protected against mismating, Threaded flange, 1,50 mm², light gray.

Features

  • Universal connection for all conductor types
  • For wire-to-wire and board-to-wire connections
  • Strain relief plates and housings for factory and field assembly
  • 100% protected against mismating
Technical specifications
Colour light gray
Type of locking Yes
contact surface tin-plated
Rated current 10 A
Grid 3.5 mm
Pin number 13 pole
Version pin header
Orientation angled
Connection spring balancer connection
Contact type pin
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin PL
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
