734-307/033-000 | WAGO
Pin header, 7 pole, pitch 3.5 mm, angled, light gray, 734-307/033-000
Unit Price (€ / pc.)
6.3070 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

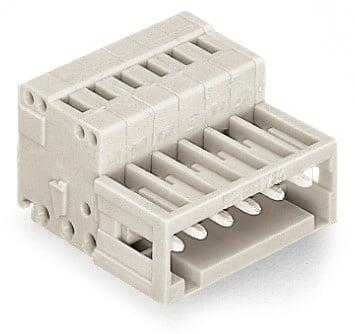

Male connector, 734-307/033-000, WAGO
1-conductor male connector, CAGE CLAMP®, 1.5 mm², Pin spacing 3.5 mm, 7-pole, 100% protected against mismating, Strain relief plate, 1,50 mm², light gray.
Features
- Universal connection for all conductor types
- For wire-to-wire and board-to-wire connections
- Strain relief plates and housings for factory and field assembly
- 100% protected against mismating
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Farbe | lichtgrau | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 160 V | |
| Nennstrom | 10 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 7-polig | |
| Rastermaß | 3.5 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
