734-236 | WAGO

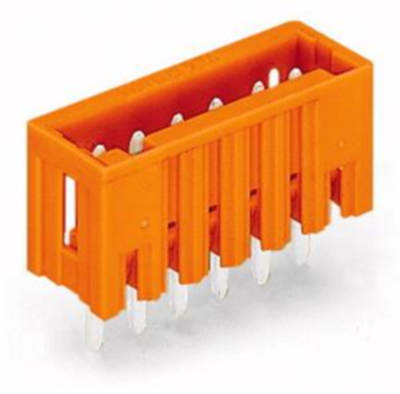

Pin header, 6 pole, pitch 3.81 mm, straight, orange, 734-236
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.7374 €
50 pcs.
1.5827 €
100 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 734-236, Wago

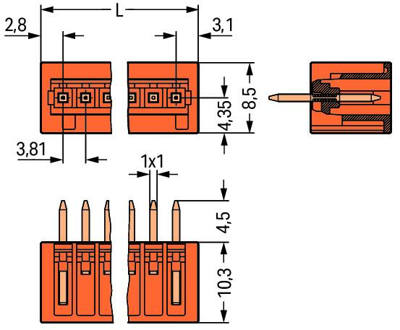

Male header with straight solder pins 6-pin Spacing 3.81 mm / 0.15 in 100 % mismating protected with side walls Mating direction perpendicular to PCB orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Connection plating | tin-plated | |
| Colour | orange | |
| Rated voltage | 160 V | |
| Connection | solder pin | |
| Pin number | 6 pole | |
| contact surface | tin-plated | |
| Type of locking | No | |
| Additional parts | equipped | |
| Grid | 3.81 mm | |
| Version | pin header | |
| Number of rows | 1 | |
| Contact type | pin | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
