734-233/105-604 | WAGO

Pin header, 3 pole, pitch 3.81 mm, straight, black, 734-233/105-604

Order No.: 44P4038
EAN: 4045454791919
MPN:
734-233/105-604
Series: MCS MINI

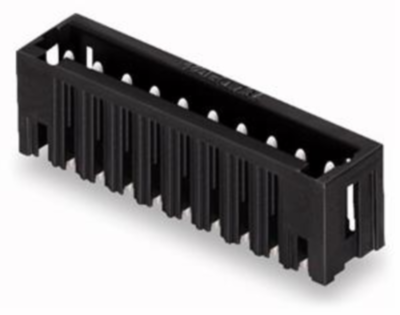

734-233/105-604 WAGO PCB Connection Systems Image 1
734-233/105-604 WAGO PCB Connection Systems Image 2
734-233/105-604 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.93 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9282 €
10 pcs.
0.8330 €
100 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

Male header, 734-233/105-604, Wago

Male connector with straight solder pins 3 poles Spacing 3,81 mm / 0.15 in 100 % mismate protected with side panels Mating direction perpendicular to PCB Reflow technique Solder pin length 2,4 mm black

Technical specifications
Colour black
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.81 mm
Connection plating tin-plated
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
