734-138 | WAGO

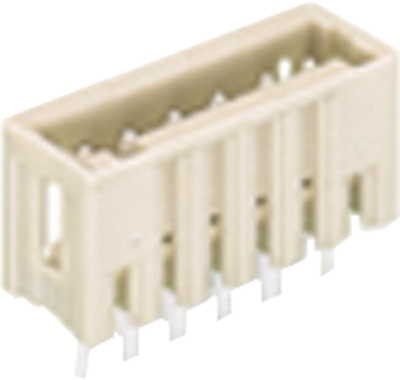

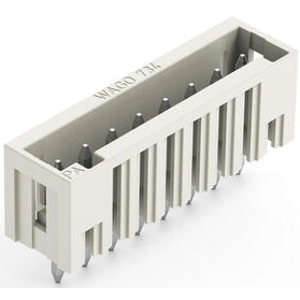

Pin header, 8 pole, pitch 3.5 mm, straight, light gray, 734-138
Unit Price (€ / pc.)
1.8207 € *
Available: 90 pcs.
Pin headers and multipole connectors MCS Mini, type Wago 734.
Cage clamp technology, 3.5 mm grid, single-row, 100 % protection against incorrect insertion; Rated voltage: 160 V. Rated surge voltage: 2.5 kV. Rated current: 10 A. Color: light gray.
Pin headers with straight solder pins.

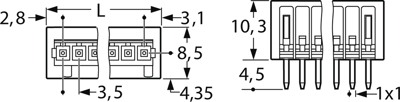

Solder pins: 1.0 x 1.0 mm.
Type: 734–138, 8–pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Rated voltage | 160 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | No | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Colour | light gray | |
| Version | pin header | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
