734-134 | WAGO

Pin header, 4 pole, pitch 3.5 mm, straight, light gray, 734-134

Order No.: 46F544
EAN: 4044918847568
MPN:
734-134
Series: MCS MINI

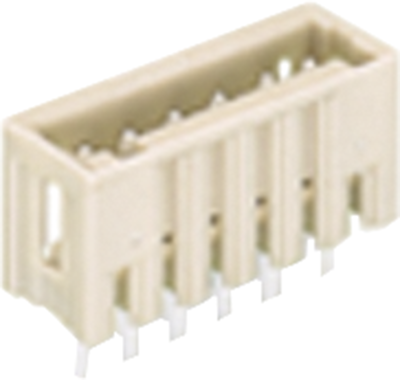

734-134 WAGO PCB Connection Systems Image 1

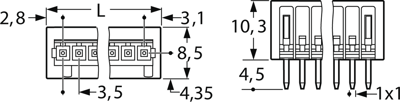

734-134 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.0948 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0948 €
10 pcs.
0.9877 €
100 pcs.
0.8806 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers and multipole connectors MCS Mini, type Wago 734.

Cage clamp technology, 3.5 mm grid, single-row, 100 % protection against incorrect insertion; Rated voltage: 160 V. Rated surge voltage: 2.5 kV. Rated current: 10 A. Color: light gray.

Pin headers with straight solder pins.

Solder pins: 1.0 x 1.0 mm.

Type: 734–134, 4–pole

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 10 A
Grid 3.5 mm
Connection plating tin-plated
Pin number 4 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
