733-365/105-604/997-406 | WAGO
Pin header, 5 pole, pitch 2.5 mm, angled, black, 733-365/105-604/997-406
Unit Price (€ / pc.)
1.666 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Male connector, 733-365/105-604/997-406, Wago

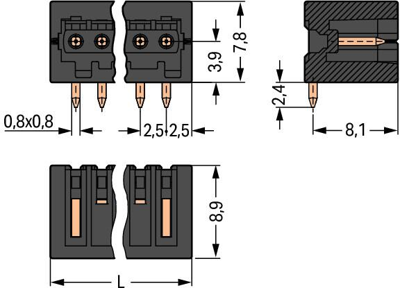

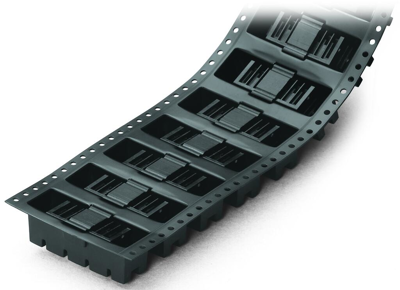

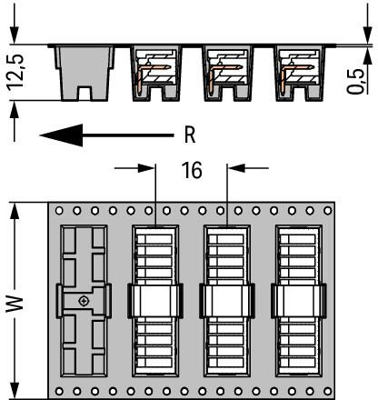

Male connector with angled solder pins in tape acc. to IEC 60286-35-pin Spacing 2.5 mm / 0.098 in 100 % mismating protected Mating direction parallel to PCB with side panels Reflow technology Solder pin length 2.4 mm black
Technical specifications
| Colour | black | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 6 A | |
| Grid | 2.5 mm | |
| Connection plating | tin-plated | |
| Pin number | 5 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | solder pin | |
| Contact type | pin | |
| Rated voltage | 160 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
