733-362/105-604/997-406 | WAGO
Pin header, 2 pole, pitch 2.5 mm, angled, black, 733-362/105-604/997-406
Unit Price (€ / pc.)
0.9639 € *
Standard delivery time from the manufacturer is: 3 Weeks
Male header, 733-362/105-604/997-406, Wago

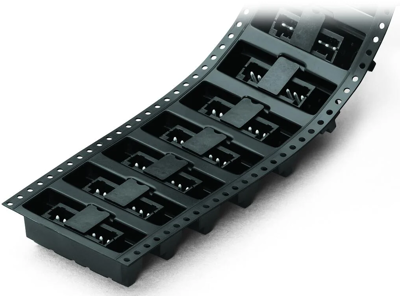

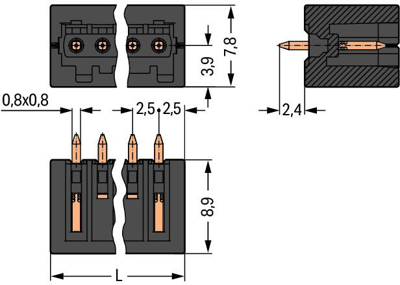

Male connector with angled solder pins in tape according to IEC 60286-32-pin Spacing 2.5 mm / 0.098 in 100 % mismating protected Mating direction parallel to PCB with side panels Reflow technology Solder pin length 2.4 mm black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 2.5 mm | |
| Orientation | angled | |
| Rated voltage | 160 V | |
| Connection | solder pin | |
| Pin number | 2 pole | |
| Version | pin header | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
