733-340/105-604 | WAGO

Pin header, 10 pole, pitch 2.5 mm, straight, black, 733-340/105-604

Order No.: 44P3738
EAN: 4045454676155
MPN:
733-340/105-604
Series: MCS MICRO

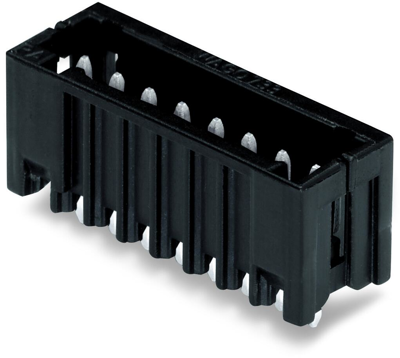

733-340/105-604 WAGO PCB Connection Systems Image 1
733-340/105-604 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.4633 €

Male header, 733-340/105-604, Wago

Male header with straight solder pins 10 poles grid spacing 2,5 mm / 0.098 in 100 % mismating protected mating direction perpendicular to PCB with side walls reflow technique solder pin length 2,4 mm black

Technical specifications
Filter Property Value
Connection plating tin-plated
Connection solder pin
Colour black
Additional parts equipped
Pin number 10 pole
Contact type pin
Orientation straight
Type of locking No
Rated voltage 160 V
contact surface tin-plated
Version pin header
Rated current 6 A
Number of rows 1
Grid 2.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
