733-338/105-604 | WAGO

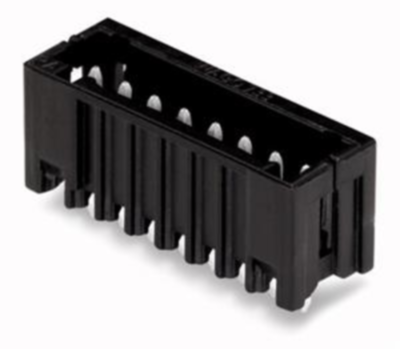

Pin header, 8 pole, pitch 2.5 mm, straight, black, 733-338/105-604
Unit Price (€ / pc.)
1.9516 € *
Standard delivery time from the manufacturer is: 3 Weeks
Male header, 733-338/105-604, Wago

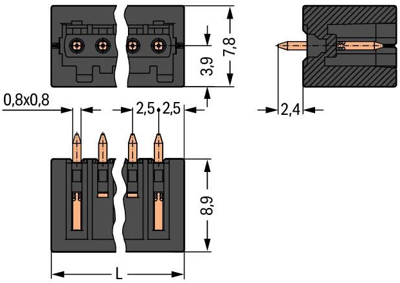

Male header with straight solder pins 8-pin pitch 2.5 mm / 0.098 in 100 % mismating protected mating direction perpendicular to PCB with sidewalls reflow technique solder pin length 2.4 mm black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Rated voltage | 160 V | |
| Connection | solder pin | |
| Pin number | 8 pole | |
| Version | pin header | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
