733-332/105-604 | WAGO

Pin header, 2 pole, pitch 2.5 mm, straight, black, 733-332/105-604

Order No.: 44P3721
EAN: 4045454676070
MPN:
733-332/105-604
Series: MCS MICRO

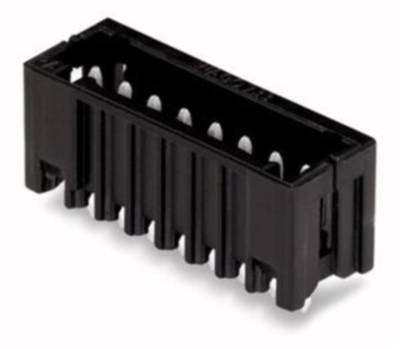

733-332/105-604 WAGO PCB Connection Systems Image 1
733-332/105-604 WAGO PCB Connection Systems Image 2
733-332/105-604 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
0.7021 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6426 €
100 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale

Male header, 733-332/105-604, Wago

Male connector with straight solder pins 2 poles grid spacing 2,5 mm / 0.098 in 100 % mismating protected mating direction perpendicular to PCB with side walls reflow technique solder pin length 2,4 mm black

Technical specifications
Filter Property Value
Colour black
Type of locking No
contact surface tin-plated
Rated current 6 A
Grid 2.5 mm
Connection plating tin-plated
Pin number 2 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 160 V
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
