732-110/026-000 | WAGO

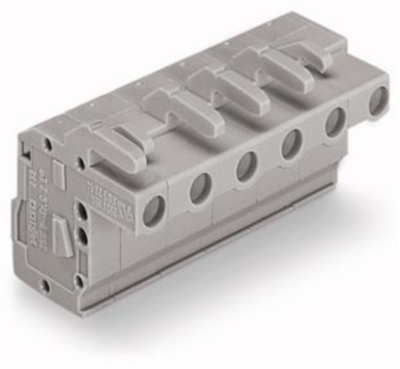

Socket header, 10 pole, pitch 7.5 mm, angled, gray, 732-110/026-000
Unit Price (€ / pc.)
8.7465 € *
Next delivery: 20 pcs. on 2026-01-15
Female header, 732-110/026-000, Wago
Angled female multipoint connector 10-pole Spacing 7.5 mm / 0.295 in codable Conductor exit to wavy side of male connector with 2 detents gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 10 pole | |
| Grid | 7.5 mm | |
| Connection | spring balancer connection | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
