731-518/031-000 | WAGO

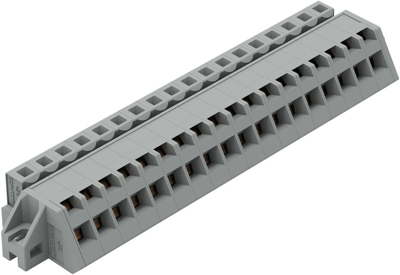

Socket header, 18 pole, pitch 5 mm, angled, gray, 731-518/031-000

Order No.: 44P3536
EAN: 4044918575348
MPN:
731-518/031-000
Series: 731
731-518/031-000 WAGO PCB Connection Systems Image 1
731-518/031-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
17.3621 € *
Available: 6 pcs.
Total Price:
17.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.3621 €

Female header, 731-518/031-000, Wago

Angled female connector with mounting flanges 18-pole Spacing 5 mm / 0.197 in for surface mounting for screw or similar mounting types Mounting types gray

Technical specifications
contact surface tin-plated
Connection spring balancer connection
Number of rows 1
Colour gray
Contact type socket
Additional parts equipped
Rated current 12 A
Rated voltage 320 V
Pin number 18 pole
Orientation angled
Version socket header
Type of locking No
Connection plating tin-plated
Grid 5 mm
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
