722-738/031-000 | WAGO
Socket header, 8 pole, pitch 7.5 mm, straight, light gray, 722-738/031-000
Unit Price (€ / pc.)
6.6164 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

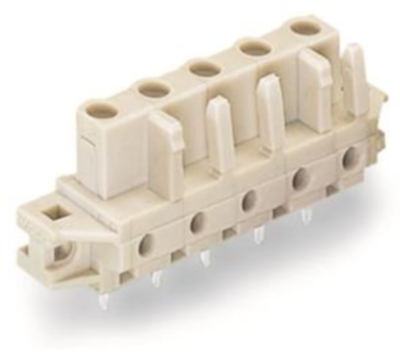

Female header, 722-738/031-000, Wago

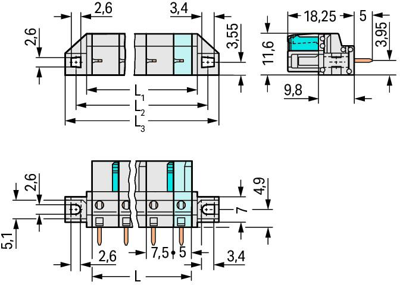

Female connector with straight solder pins and feed-through flanges 8-pole Spacing 7.5 mm / 0.295 in 100 % mismating protected Solder pin 0.6x1 mm codable Mating direction perpendicular to PCB with 2 detents for feed-through mounting
Technical specifications
| Colour | light gray | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 12 A | |
| Grid | 7.5 mm | |
| Connection plating | tin-plated | |
| Pin number | 8 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder pin | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
