721-337/031-000 | WAGO
Socket header, 7 pole, pitch 7.5 mm, angled, light gray, 721-337/031-000
Unit Price (€ / pc.)
6.3308 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

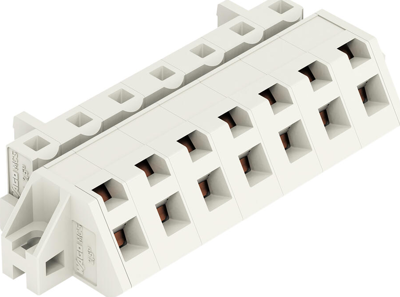

Female connector, 721-337/031-000, WAGO
1-conductor female connector, angled; Cage clamp; 2.5 mm²; Pin spacing 7.5 mm; 7-pole; 100% protected against mismating; clamping collar; 2,50 mm²; light gray.
Features
- Universal connection for all conductor types
- Easy conductor termination, even when halves are mated
Technical specifications
| Colour | light gray | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 12 A | |
| Grid | 7.5 mm | |
| Connection plating | tin-plated | |
| Pin number | 7 pole | |
| Version | socket header | |
| Orientation | angled | |
| Connection | spring balancer connection | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
