721-134/001-040 | WAGO

Pin header, 4 pole, pitch 5 mm, straight, light gray, 721-134/001-040

Order No.: 09P0203
EAN: 4044918868884
MPN:
721-134/001-040
Series: MCS MIDI

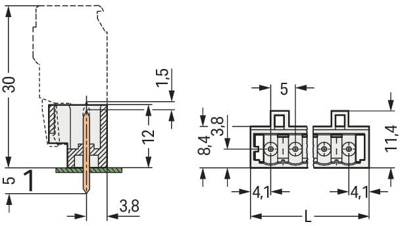

721-134/001-040 WAGO PCB Connection Systems Image 1

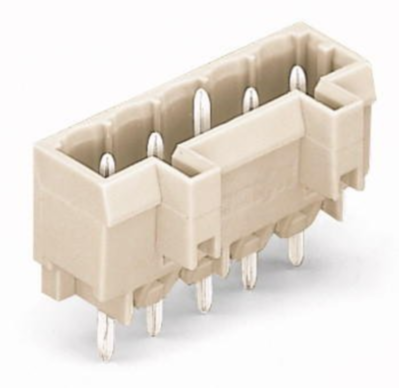

721-134/001-040 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.9996 €

Male header, 721-134/001-040, Wago

Male connector with straight solder pins 1 x 1 mm 4 poles grid spacing 5 mm / 0.197 in 100 % mismating protected with leading PE-contact with side panels mating direction perpendicular to PCB light grey

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 12 A
Grid 5 mm
Connection plating tin-plated
Pin number 4 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
