714-112 | WAGO

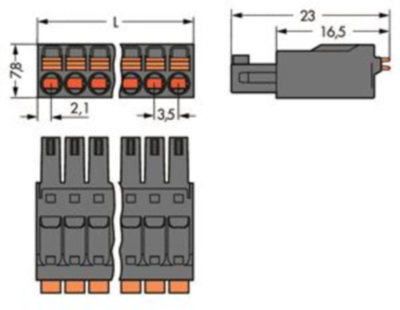

Female connector, 12 pole, pitch 3.5 mm, straight, black, 714-112
Unit Price (€ / pc.)
6.3070 € *
Standard delivery time from the manufacturer is: 3 Weeks
Female connector, 714-112, WAGO
1-conductor female connector, push-button, 1.5 mm², pin spacing 3.5 mm, 12-pole, 1,50 mm², black.
Features
- Female connector terminates both solid and ferruled conductors via push-in termination
- Ultra-low profile of just 7.8 mm for conductor cross-section up to 1.5 mm²
- With coding fingers and test points
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 12 pole | |
| Breakable | No | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | push-in | |
| Rated current | 8 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 49119900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
