714-105 | WAGO

Female connector, 5 pole, pitch 3.5 mm, straight, black, 714-105

Order No.: 43P1890
EAN: 4045454858735
MPN:
714-105
Series: MCS MINI SL
714-105 WAGO PCB Connection Systems Image 1
714-105 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.1892 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1892 €

Female connector, 714-105, WAGO

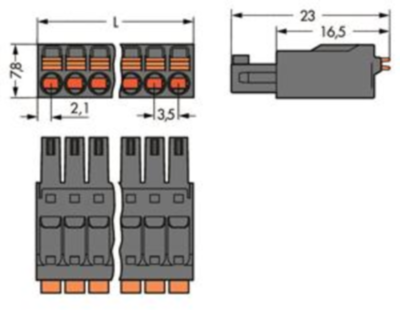

1-conductor female connector, push-button, 1.5 mm², pin spacing 3.5 mm, 5-pole, 1,50 mm², black.

Features

  • Female connector terminates both solid and ferruled conductors via push-in termination
  • Ultra-low profile of just 7.8 mm for conductor cross-section up to 1.5 mm²
  • With coding fingers and test points
Technical specifications
Colour black
Breakable No
Rated current 8 A
Grid 3.5 mm
Pin number 5 pole
Version socket header
Additional parts equipped
Orientation straight
Connection push-in
Contact type socket
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 49119900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
