713-1113/000-047 | WAGO

Socket header, 26 pole, pitch 3.5 mm, straight, black, 713-1113/000-047

Order No.: 44P1990
EAN: 4050821176527
MPN:
713-1113/000-047
Series: MCS MINI HD

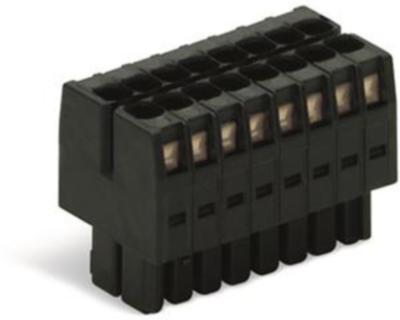

713-1113/000-047 WAGO PCB Connection Systems Image 1

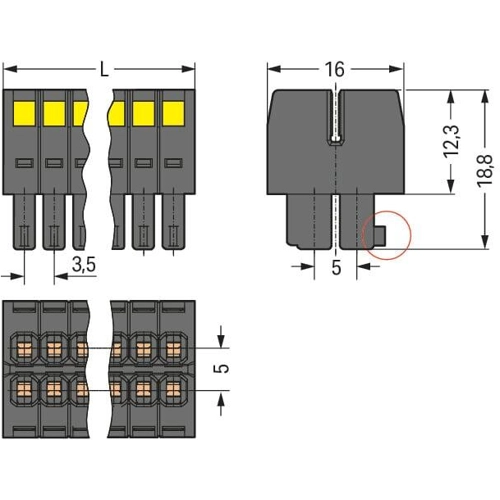

713-1113/000-047 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
15.8865 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
15.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.8865 €

1-Conductor female connector, 713-1113/000-047, Wago

Female connector 2-row 13x2-pole Spacing 3,5 mm / 0.138 in 100 % mismating protected codable by cutting off the coding lugs black

Technical specifications
Filter Property Value
Grid 3.5 mm
Orientation straight
Connection spring balancer connection
Contact type socket
Rated current 10 A
Additional parts equipped
Version socket header
Pin number 26 pole
Type of locking No
contact surface tin-plated
Number of rows 2
Colour black
Rated voltage 160 V
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
