713-1110/107-047 | WAGO

Socket header, 20 pole, pitch 3.5 mm, straight, black, 713-1110/107-047

Order No.: 44P1955
EAN: 4050821158028
MPN:
713-1110/107-047
Series: MCS MINI HD

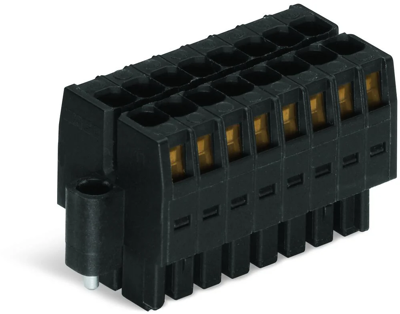

713-1110/107-047 WAGO PCB Connection Systems Image 1

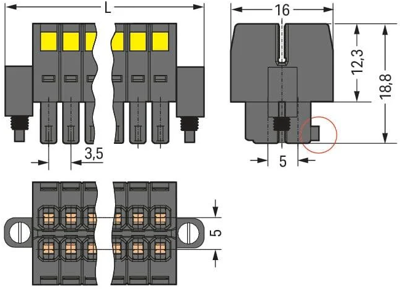

713-1110/107-047 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
12.8163 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
12.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.8163 €

1-Conductor female connector, 713-1110/107-047, Wago

Female connector with screwed flanges 2-row 10x2-pole Spacing 3,5 mm / 0.138 in 100 % mismating protected codable by cutting off the coding lugs black

Technical specifications
Filter Property Value
Rated current 10 A
Type of locking Yes
Contact type socket
Colour black
Number of rows 2
Additional parts equipped
Connection spring balancer connection
Orientation straight
Grid 3.5 mm
Rated voltage 160 V
Pin number 20 pole
Version socket header
contact surface tin-plated
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
